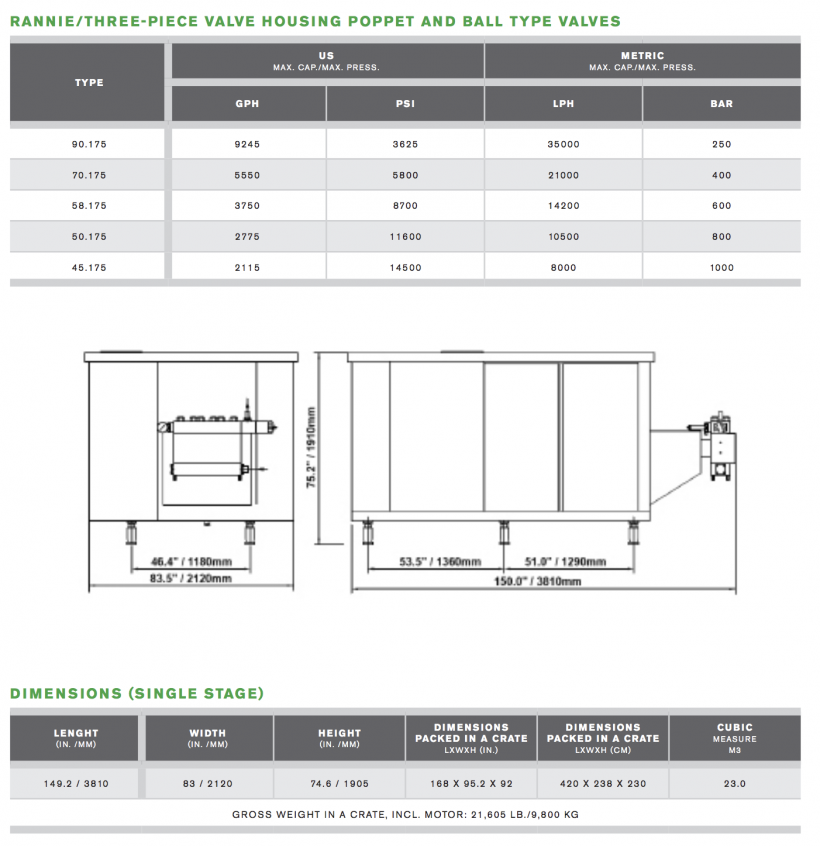

APV High Pressure Homogenizer Rannie 315

The Rannie 315 homogeniser, a positive-displacement triplex, reciprocating plunger pump, is fitted with an application-specific homogenising valve assembly: single-stage with hydraulic actuation. It incorporates a durable slow-speed power end that reduces vibration and noise. Easy access to the
hydraulic actuation system, lubrication oil and other auxiliary systems simplifies maintenance saving time and money. The Rannie 315 features a three-piece valve housing (ball and poppet style).

Standard options for Rannie 315 :
• Two-stage hydraulic valve actuation (HVA)
• Single-stage automatic hydraulic system (AHS)
• Two-stage automatic hydraulic system (AHS)
• Pulsation dampener(s) on inlet and outlet
• Aseptic cylinder design
• Electronic pressure transmitter (excl. display)
• High-pressure outlet
• Inlet pressure gauge
• Plunger lubrication control package
• Micro-Gap homogenising valve
• Tungsten carbide homogenising valve
• Square plunger seals and ceramic plungers
• External cooling fan/main motor
• Motor starter
• Control cabinet, stainless steel
• Thermostat/oil temperature

Special Options :
• Ceramic plungers with U- or V-rings
• Explosion-proof design
• Electropolished wettables
• High-temperature design
• Flow switch – power end cooling
• UFO – Unit for Filtration of Oil
