Waukesha Butterfly Valves 200 Series

PRODUCT FEATURES AND BENEFITS
• All Stainless Construction: Forged, precision-machined body and electropolished disc
• Sanitary surface finish
• FDA-Approved materials: choice of elastomeric seats

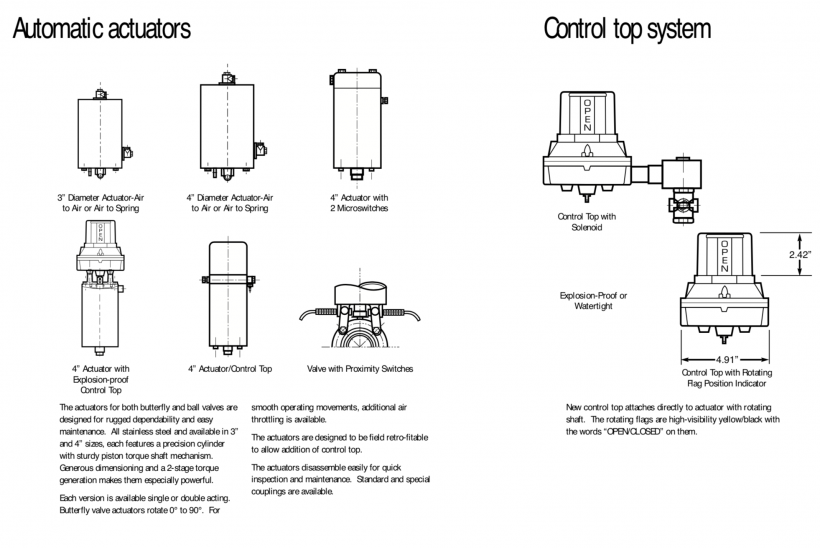

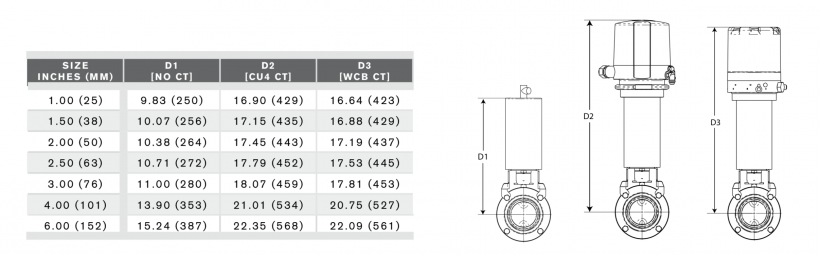

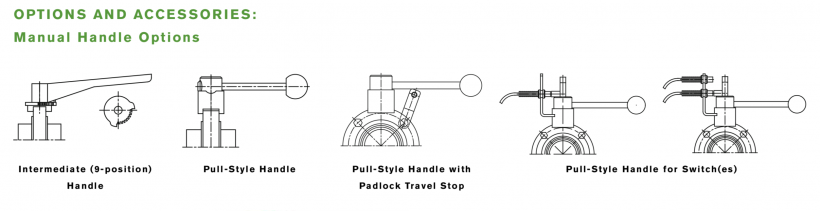

• Complete line of manual and air actuators with control top options
• Symmetric, metal-to-metal body interface will not over-compress body gasket
• Visual indication of open/closed position
• Open bottom stem seal for positive leak detection

PRODUCT SPECIFICATIONS
Materials:
Disc and Body:
• 316 stainless steel with sanitary finish
Seal:
• EPDM, FKM, Silicone
Internal Surface Finish:
• ≤32 Ra (≤0.8μ) – Other finishes available upon request

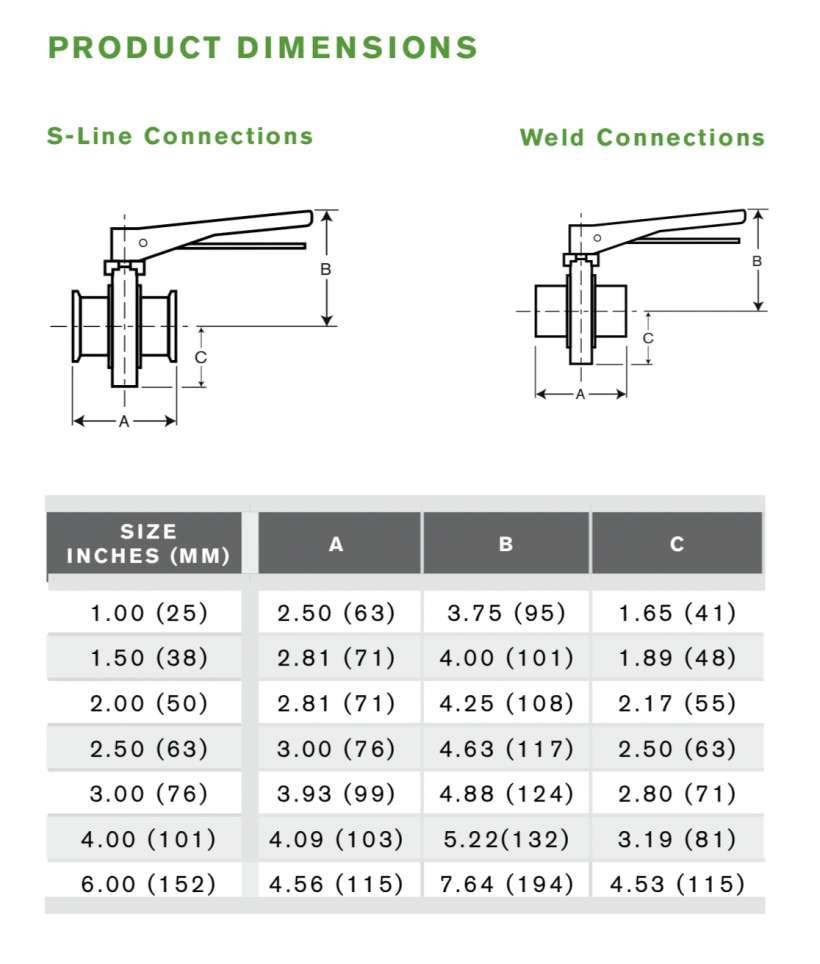

Sizes:
• 1⁄2″ – 6″ (12mm – 152mm) S-Line or Weld
Pressure Ratings:
Operating Pressure: Maximum line and control air pressure 150 psi (10 bar) Temperature Ratings:
• EPDM, FKM, Silicone : 200oF (93oC)
