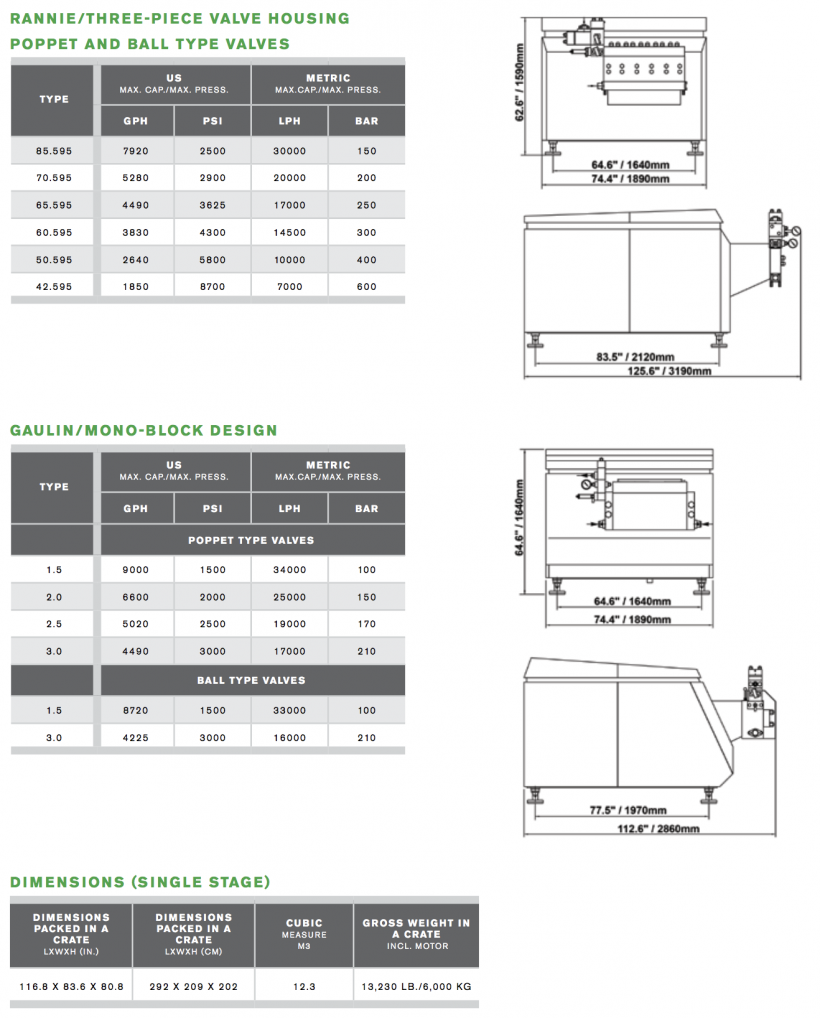

APV High-pressure Homogenizer Rannie 132Q / Gaulin 132Q

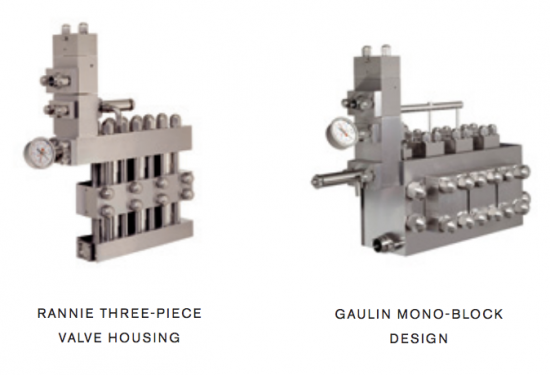

The Rannie 132Q / Gaulin 132Q homogenizer, a five plunger, positive displacement, reciprocating pump, is fitted with an application-specific homogenising valve assembly: single-stage with hydraulic actuation. The Rannie 132Q / Gaulin 132Q homogeniser incorporates a durable slow-speed power end that reduces vibration and noise. Easy access to the hydraulic actuation system, lubrication oil and other auxiliary systems simplifies maintenance saving time and money. Liquid end options include a three-piece valve housing (Rannie) or a mono-block design (Gaulin) (ball and poppet style).

Standard Options for Rannie 132Q / Gaulin 132Q :
• Two-stage hydraulic valve actuation (HVA)
• Single-stage automatic hydraulic system (AHS)
• Two-stage automatic hydraulic system (AHS)
• Pulsation dampener(s) on inlet and outlet
• Aseptic cylinder design
• Electronic pressure transmitter excl. display
• High-pressure outlet
• Inlet pressure gauge
• Plunger lubrication control package
• Micro-Gap homogenising valve
• Tungsten carbide homogenising valve
• Square plunger seals and ceramic plungers (Rannie valve housing only)
• External cooling fan/main motor
• Motor starter
• Control cabinet, stainless steel
• Thermostat/oil temperature

Special Options
• Acid-proof cylinder (Gaulin valve housing only)
• Ceramic plungers with U- or V-rings
• Explosion-proof design
• Electropolished wettables
• High-temperature design
• Flow switch – power end cooling
• UFO – Unit for Filtration of Oil
